Details

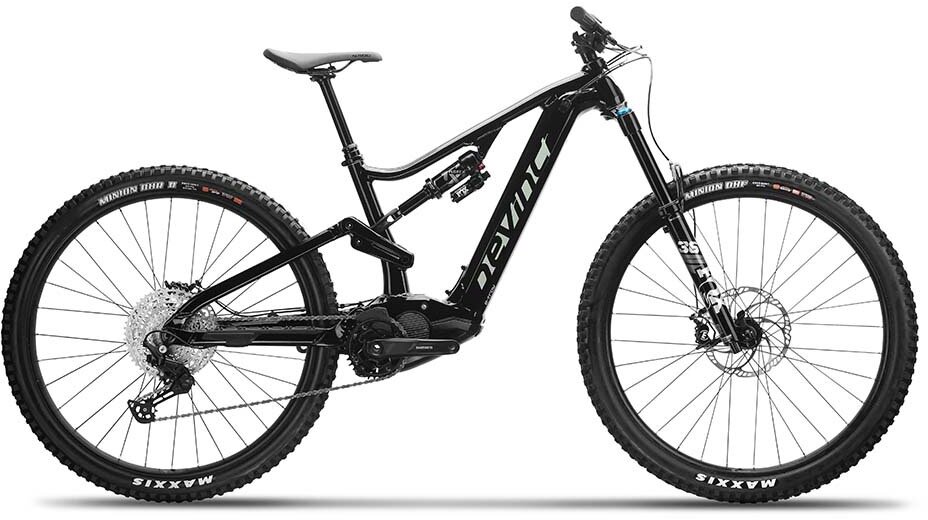

What makes E-Troy so dangerously fun is its uncanny ability to acclimate and annihilate anything you point it toward — from technical and gnarled, to rolling and flat-out fast. Agile handling is a function of modern geometry that combines steep seat angles for climbing with slacker head angles for confidence inspiring cornering and control. Frame anatomy is crafted from light, tough 6061-T6 Aluminum. Molded frame, motor, and battery protection shields the bike from abuse. And armed with Shimano's next generation e-engine with a powerful 725Wh battery, that integrates seamlessly into the frame, you'll experience effortless liftoff as you charge climbing segments at rates that'll make your heart race. Hop on the E-Troy today for a helluva good time.
Specs
Frame | Aluminum Optimum G04 150mm |
---|---|
Fork | Fox 38 Performance Elite E-Bike Grip2 160 | 51 Offset |
Headset | FSA SX Pro | 1.5 |
Rear Shock | Fox Float X Performance Elite Evol LV | 0.6VSpacer| 230x57.5 |
Rims/Wheels | Front: RaceFace Aeffect R30 29 Boost110x15 | 30mm inner Rear: RaceFace Aeffect R30 29er B148x12 HG | 30mm inner EMTB |
Tires | Front: Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR Rear: Maxxis Minion DHRII | 29x2.4wt | 3C MaxxGrip DoubleDown TR |
Crankset | E13 ESpec Plus 165mm |
Chainrings | Sram X-Sync Eagle 34T EMTB |
Chain | SRAM GX Eagle | 12s |
Rear Derailleur | SRAM GX Eagle | 12s |
Cassette/Rear Cogs | SRAM PG1230 | 12s | 11-50T | HG |
Shifters | SRAM GX Eagle 12s Single Click |
Handlebars | V2 Pro | B:35mm | R:25mm | W:780mm |
Tape/Grips | Devinci Performance | w/lock-on |
Stem | V2 Pro | B:35mm | L:40mm | 0° |
Brakes | SRAM Code R | 4 Pistons |
Saddle | SDG BELAIR Max eMTB |
Seat Post | SDG Tellis | 34.9mm |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Evergreen / Medium | FE22062331 | 210000200572 |
Evergreen / Large | FE22062431 | 210000199465 |
